SS/Carbon Steel Pipe Fittings & Flanges Catalog
Manufacturer of SS/Carbon Steel butt weld fittings, flanges, forged fittings, pipe nipples and stub ends in all grades — ASME B16.9, ASTM A403, EN 10253 and more.
Butt Weld Fittings
Seamless & welded SS/Carbon Steel butt weld fittings per ASME B16.9 — elbows, tees, reducers, caps & more.
SS 316L Butt Weld Elbow 90 Degree
Seamless & Welded 90 Degree Elbows for directional changes.

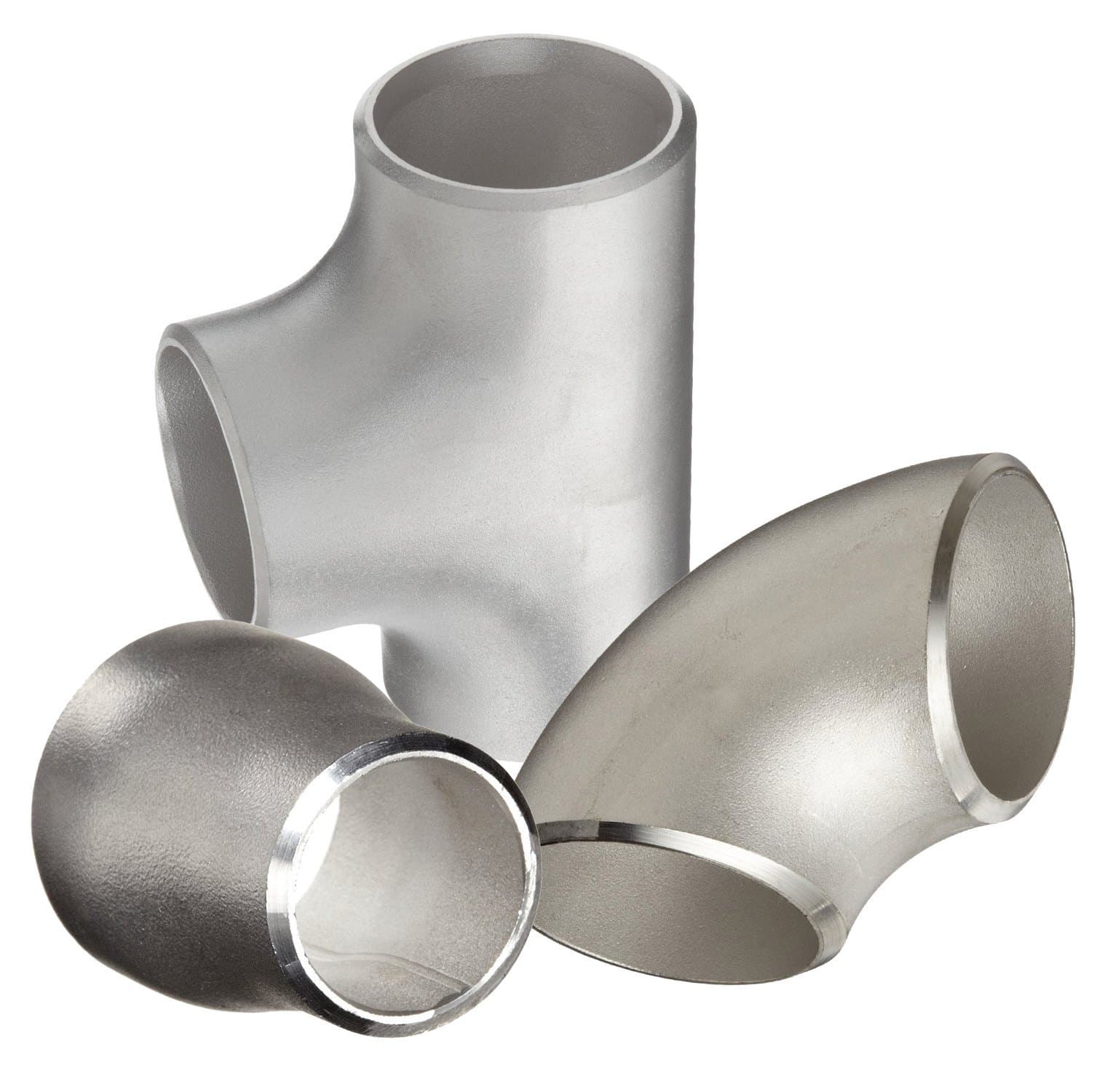

Butt Weld Pipe Fittings
ASME B16.9 stainless steel butt weld fittings - Elbows, Tees, Reducers, Caps, and Crosses in SS 304/316L grades.
Butt Weld Eccentric Reducer
Reducers with an offset center to maintain a flat bottom or top pipe profile.
Butt Weld Equal Tee
T-shaped fittings used to split or combine fluid flow equally.

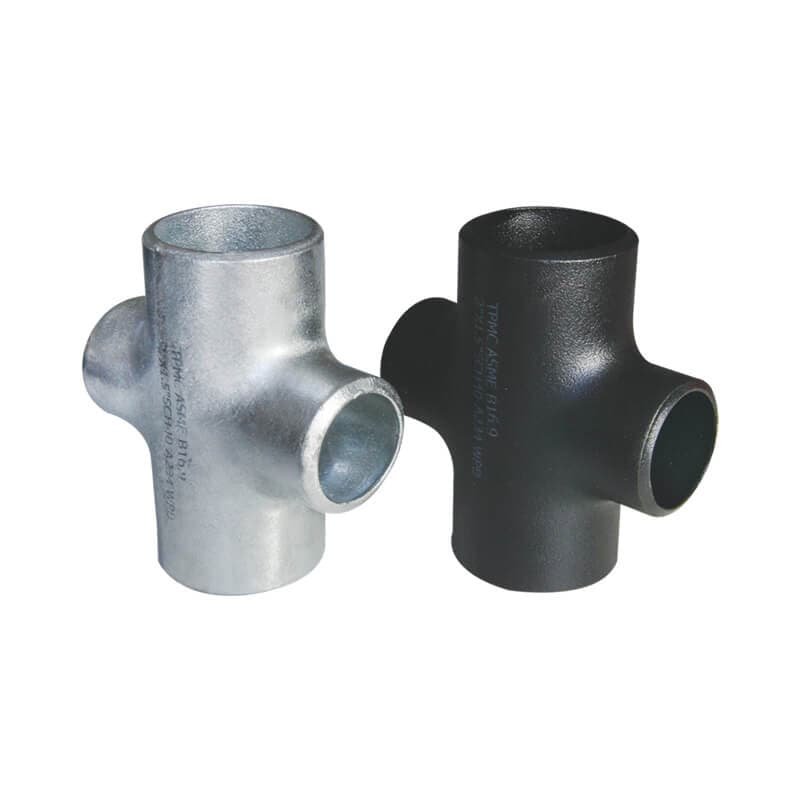

Butt Weld Reducing Cross
Four-way fittings with smaller branch outlets.
Butt Weld Equal Cross
Four-way fittings used to split flow into three directions.
Butt Weld 180° Elbow
U-bend fittings used to completely reverse the direction of fluid flow.

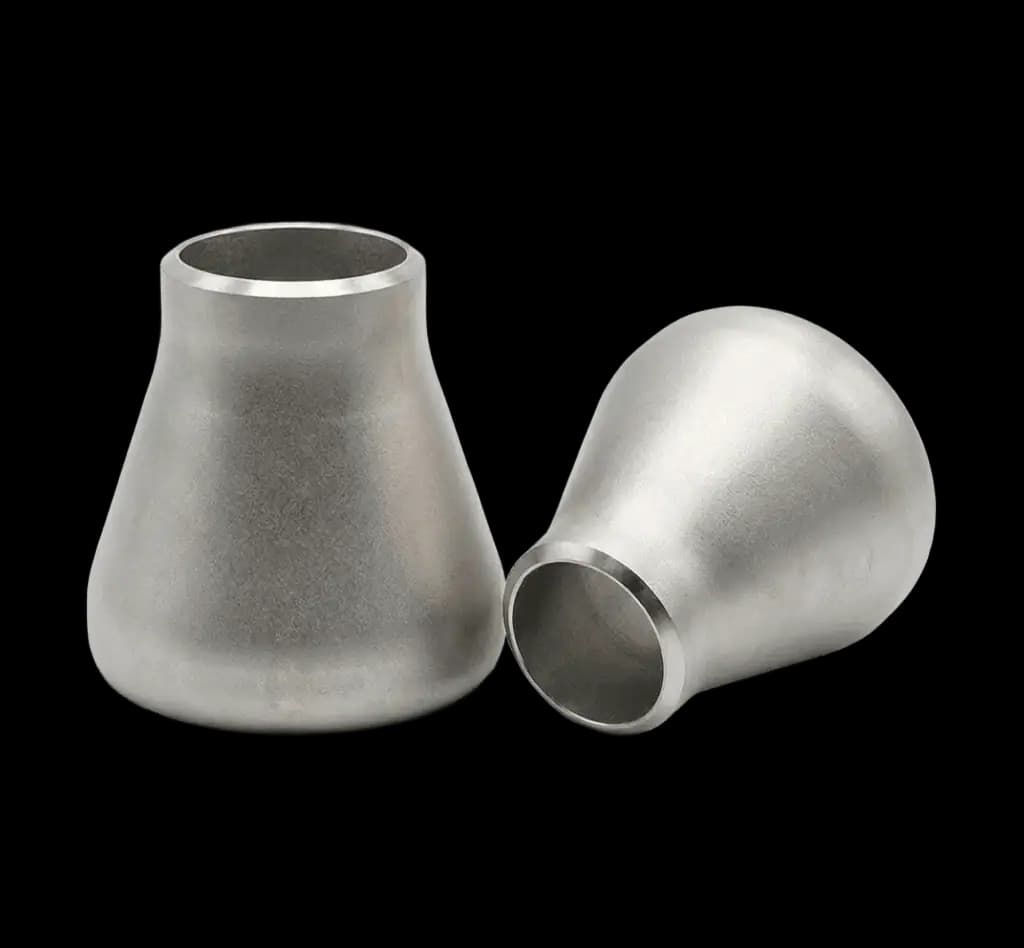

Butt Weld Concentric Reducer
Cone-shaped fittings used to transition between pipe sizes while maintaining a central axis.
Butt Weld Reducing Tee
Tees with a smaller branch diameter for distributing flow to smaller pipes.

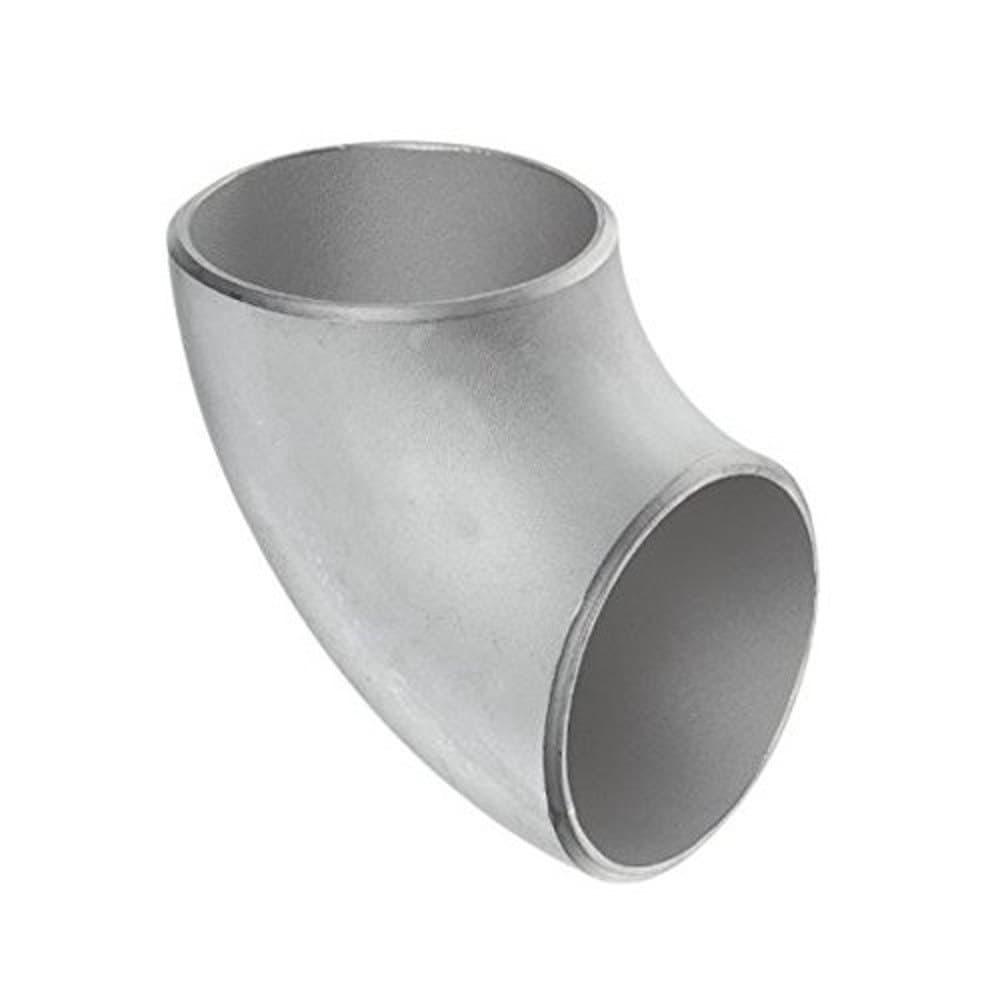

Butt Weld 45° Elbow
Changes the direction of fluid flow by 45 degrees with minimum friction.
Butt Weld Cap
Hemispherical or semi-ellipsoidal end caps used to permanently seal a pipe end.
Flanges
High-integrity flanges (Weld Neck, Slip-On, Blind, Socket Weld) for critical piping connections.

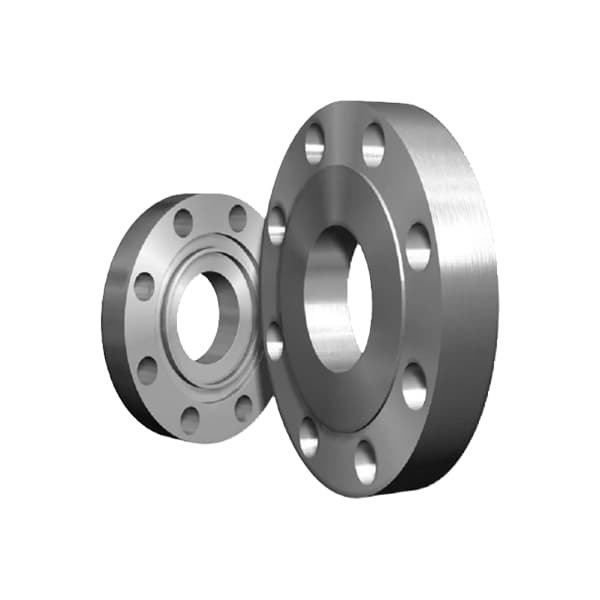

Ring Type Joint Flange (RTJ)
Flanges with specialized grooves designed for high-pressure, high-temperature leak-proof seals.

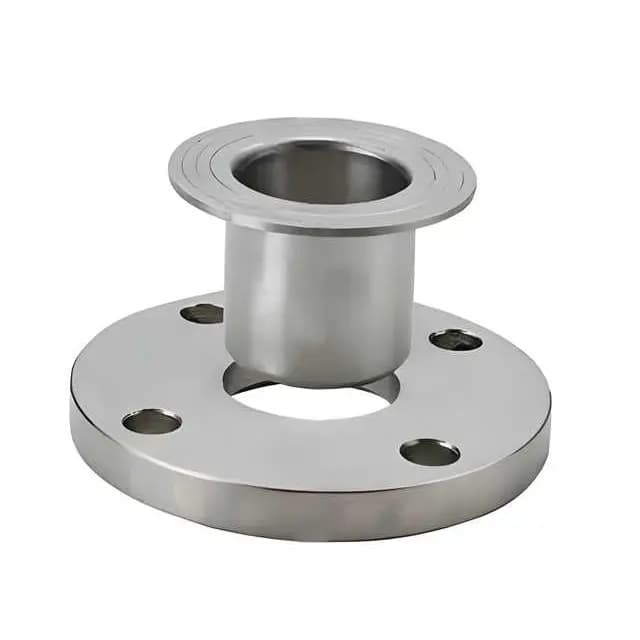

Lap Joint Flange (LJ)
Used with stub ends, lap joint flanges slide directly over the pipe for easy alignment.

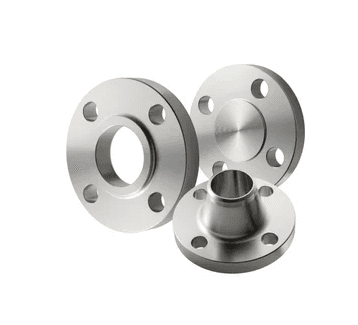

Threaded Flange (TH)
Flanges with internal threads for quick assembly without welding.

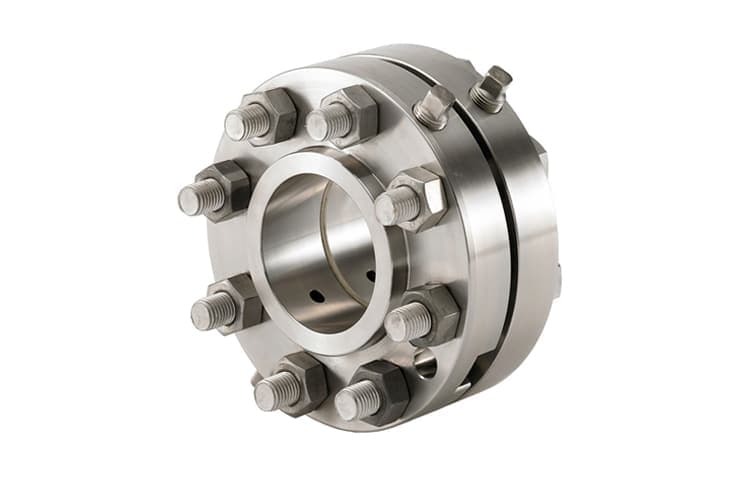

Orifice Flange (OF)
Specialized flanges equipped with pressure tapings for measuring fluid flow.

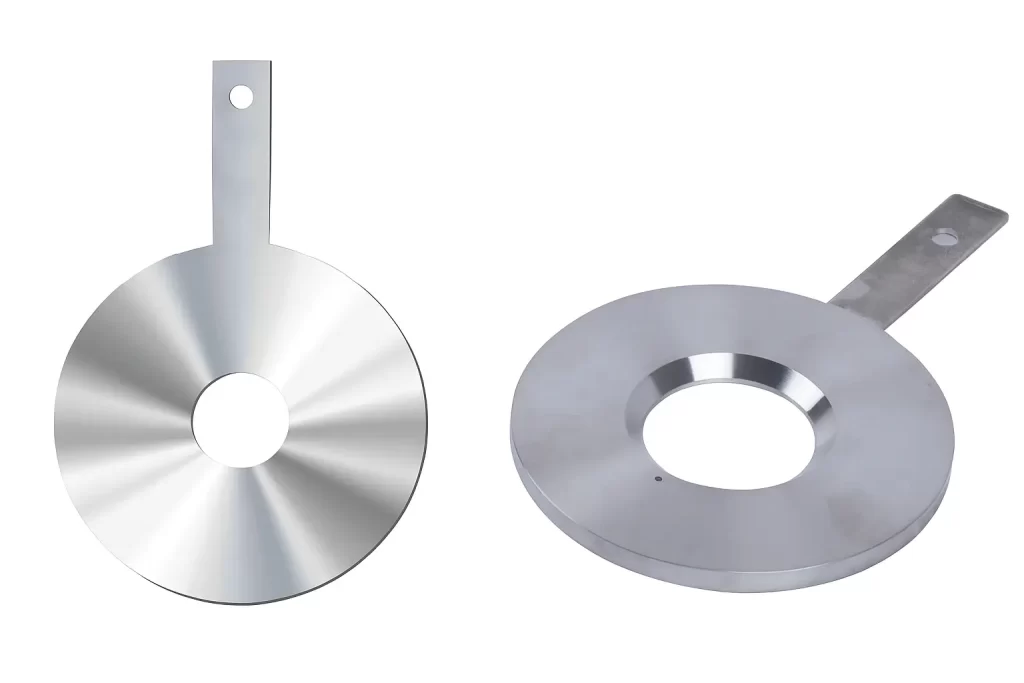

Orifice Plate (OP)
Precision-bored thin plates used for flow measurement or flow restriction.
Welding Neck Flange (WN)
Engineered for severe, high-pressure, and high-temperature service conditions.

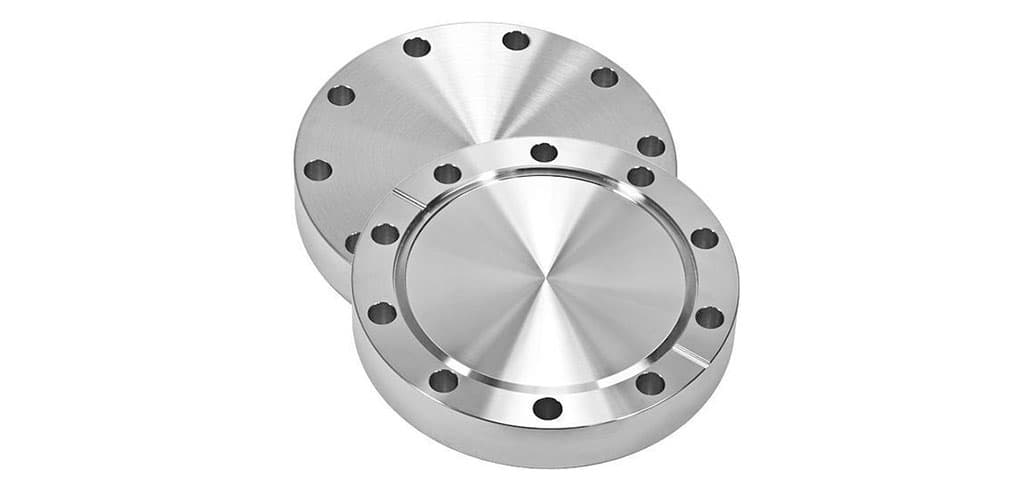

Blind Flange (BL)
Solid flanges used to seal the ends of piping systems or pressure vessel openings.
Tube Sheet Flange (TS)
Precision-drilled circular plates used as structural components in heat exchangers.

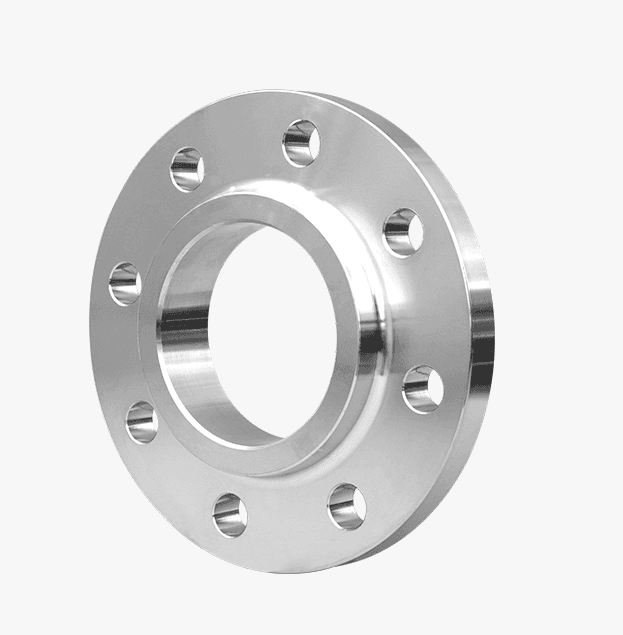

Plate Flange (PL)
Flat circular steel plates used to seal the end of pipe systems.

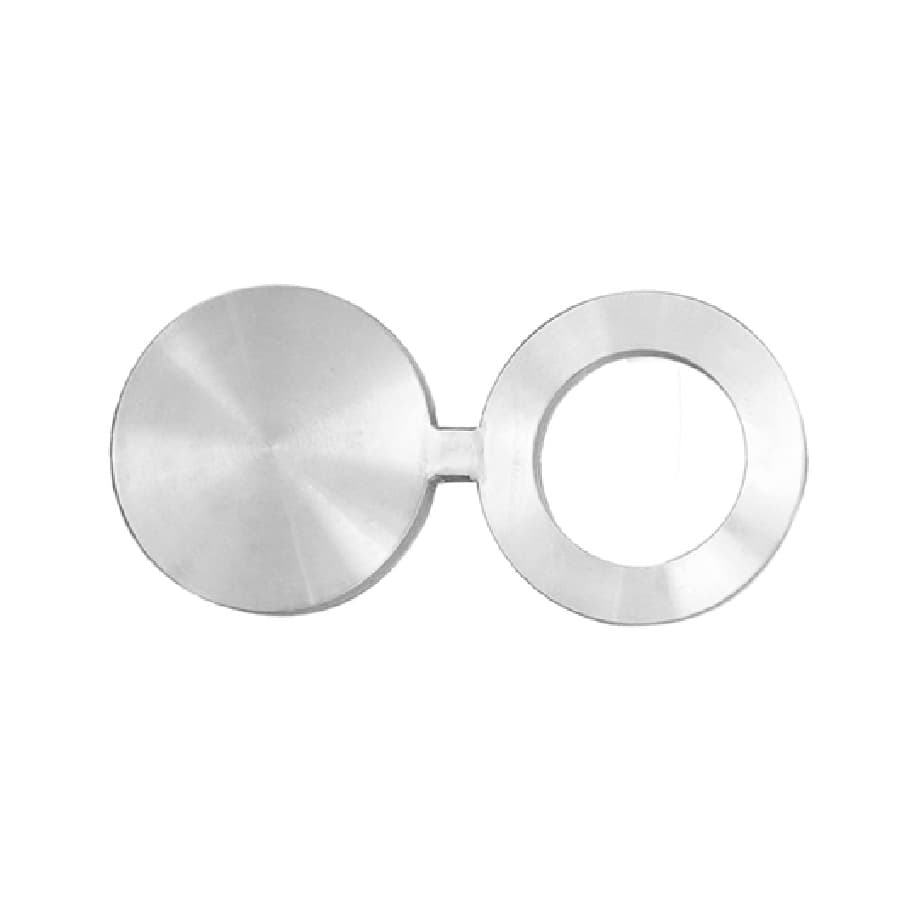

Spectacle Blind (SB)
Reversible safety devices used to positively isolate sections of a pipeline.

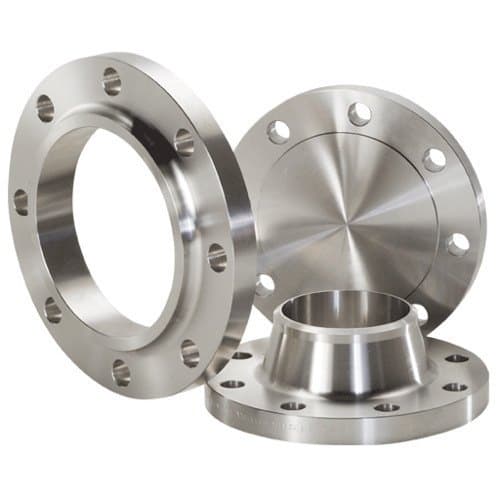

SS/Carbon Steel Flanges
Premium stainless steel/carbon steel flanges designed for high-pressure, corrosive environments.
Forged Fittings
High-pressure socket weld and threaded fittings per ASME B16.11 up to Class 9000.

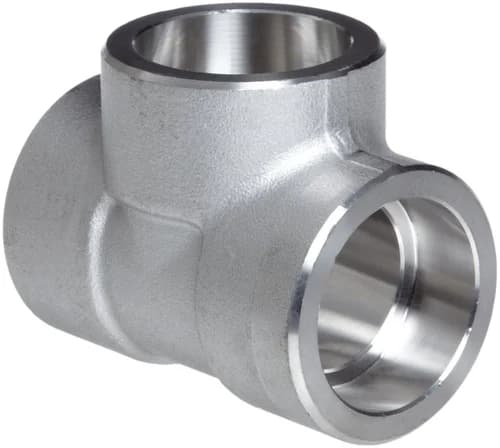

Forged Socket Weld Tee
High pressure forged socket weld tees for robust branch connections.

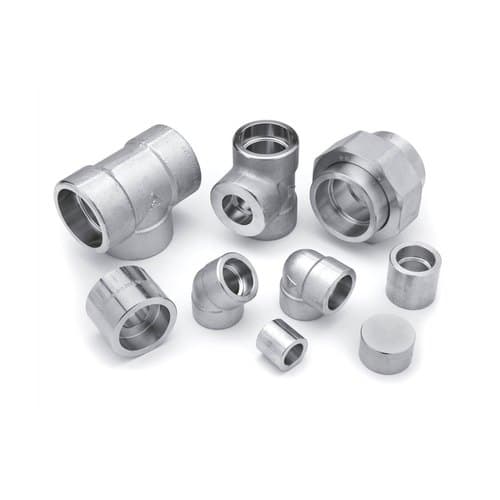

Forged Pipe Fittings
High-pressure ASME B16.11 forged SS fittings - Couplings, Elbows, Tees, Unions, and Plugs in 3000# to 9000# class.

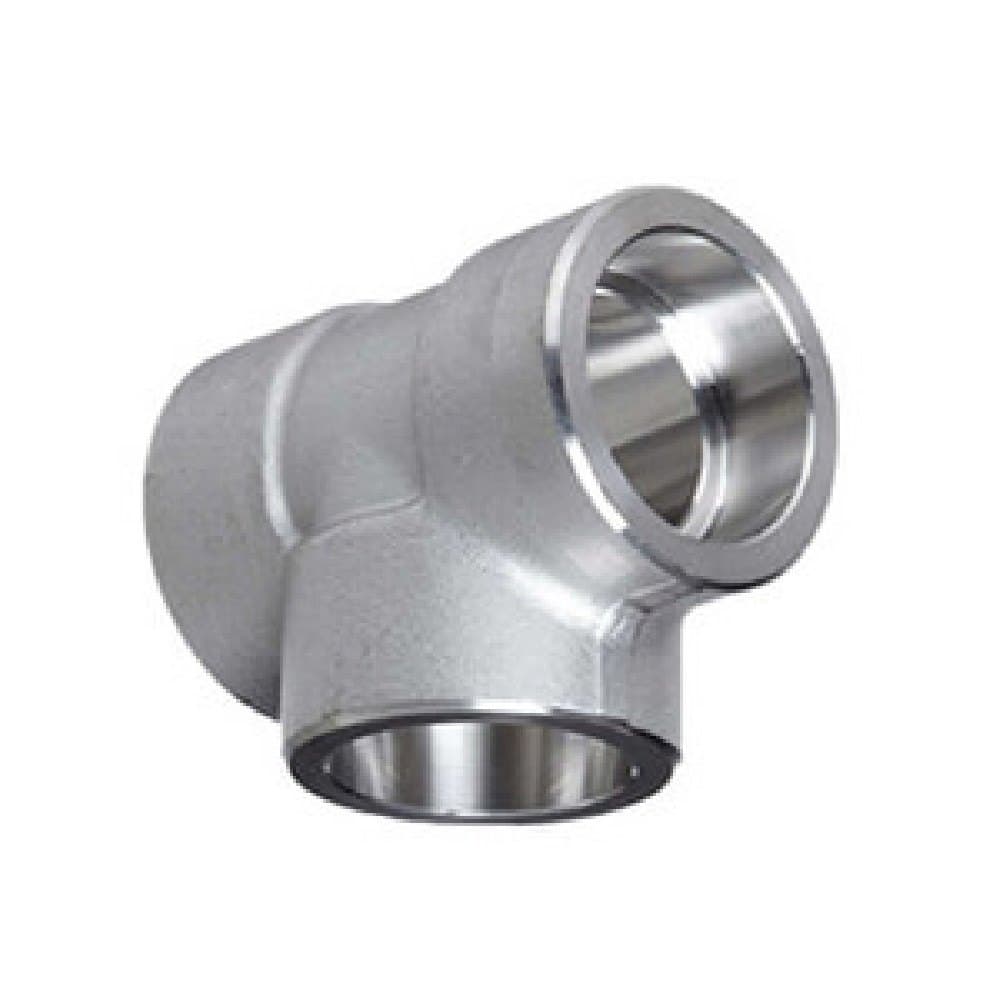

Socket Weld Equal Tee
Forged tees with socket weld ends for branching high-pressure lines.

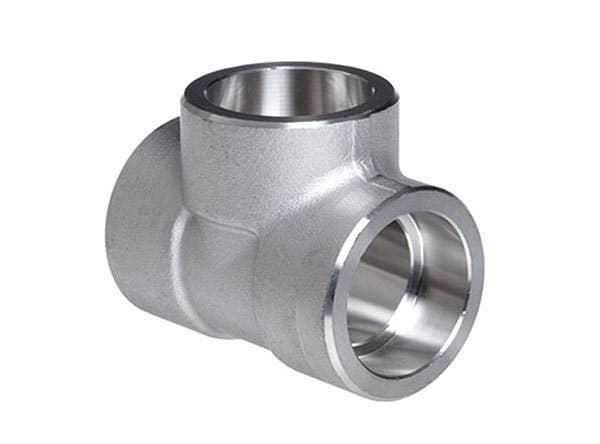

Socket Weld Reducing Tee
Forged tees with a smaller socket weld branch port.
Socket Weld Cap
Forged end caps to seal small-bore pipe ends.
Threaded 90° Elbow
Forged 90-degree elbows with internal female threads.

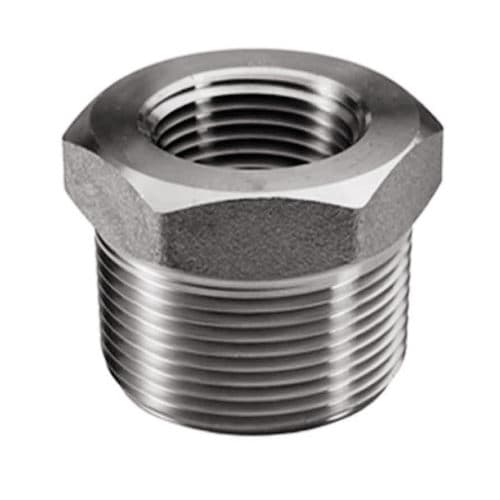

Threaded Bushing
Hex or flush-type bushings used to reduce the size of a female threaded opening.

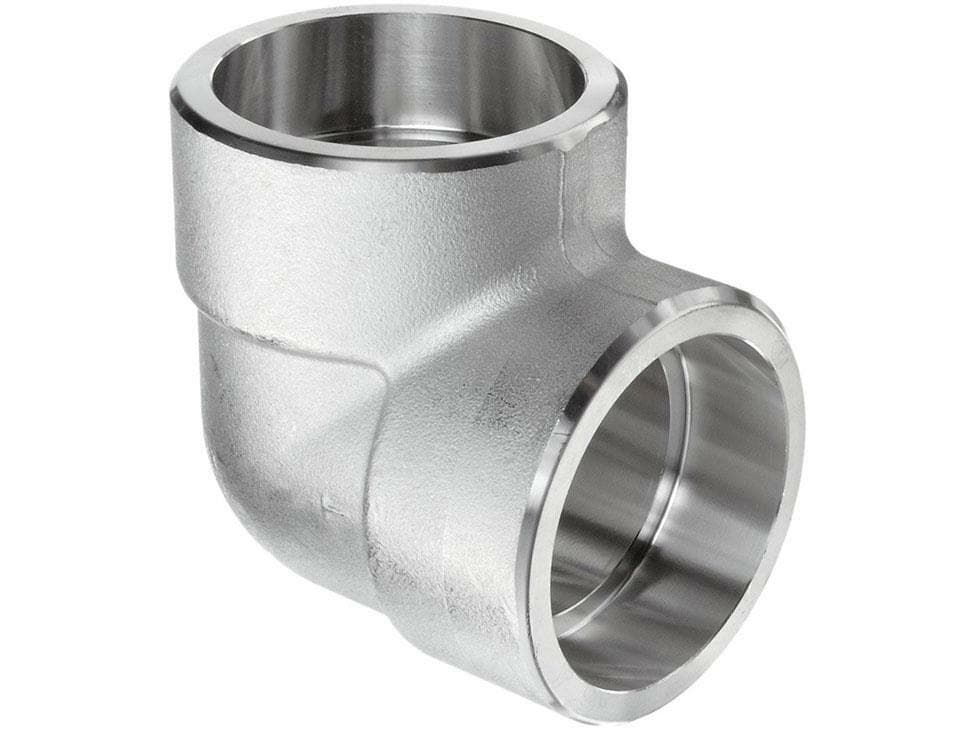

Socket Weld 90° Elbow
High-pressure forged 90-degree elbows with socket weld ends.
Socket Weld Coupling
Forged couplings used to join two pipes in a straight line.
Threaded Equal Tee
Forged T-shaped fittings with internal threads.
Socket Weld Equal Cross
Forged 4-way cross fittings with socket weld ends.
Socket Weld 45° Elbow
High-pressure forged 45-degree elbows with socket weld ends.
Socket Weld Reducer
Forged reducing inserts for transitioning pipe sizes in socket weld systems.

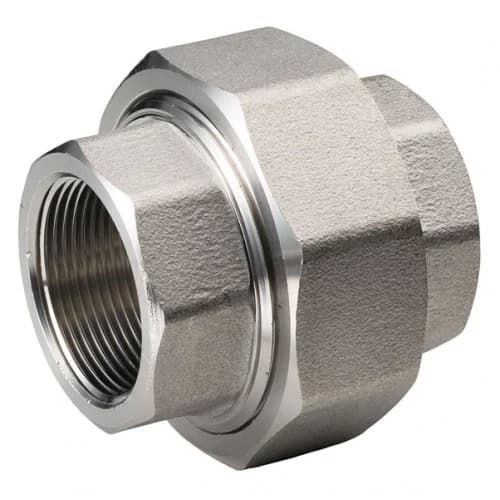

Threaded Union
Three-piece threaded fittings for easy disconnection of pipes.
Socket Weld Union
Three-piece forged fittings allowing for easy pipeline disconnection.
Threaded Coupling
Forged female-threaded cylinders used to connect two threaded pipes.

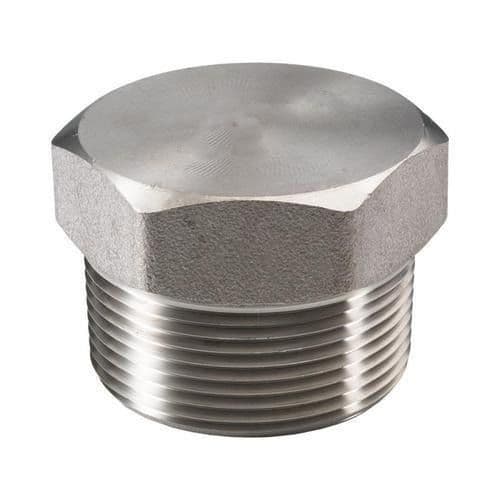

Hex Head Plug
Solid forged plugs with male threads and a hexagonal head.

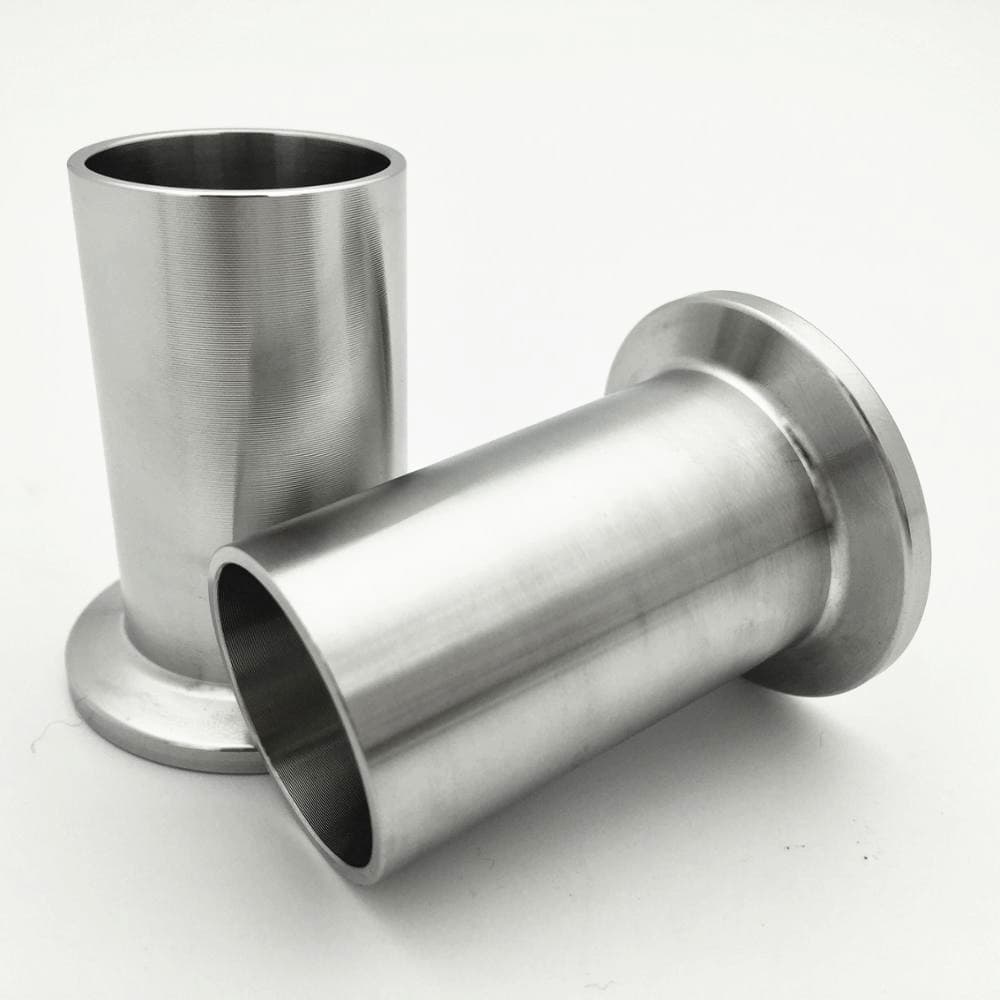

Stub Ends
MSS SP-43 Type A & B stub ends for seamless integration with lap joint flanges.

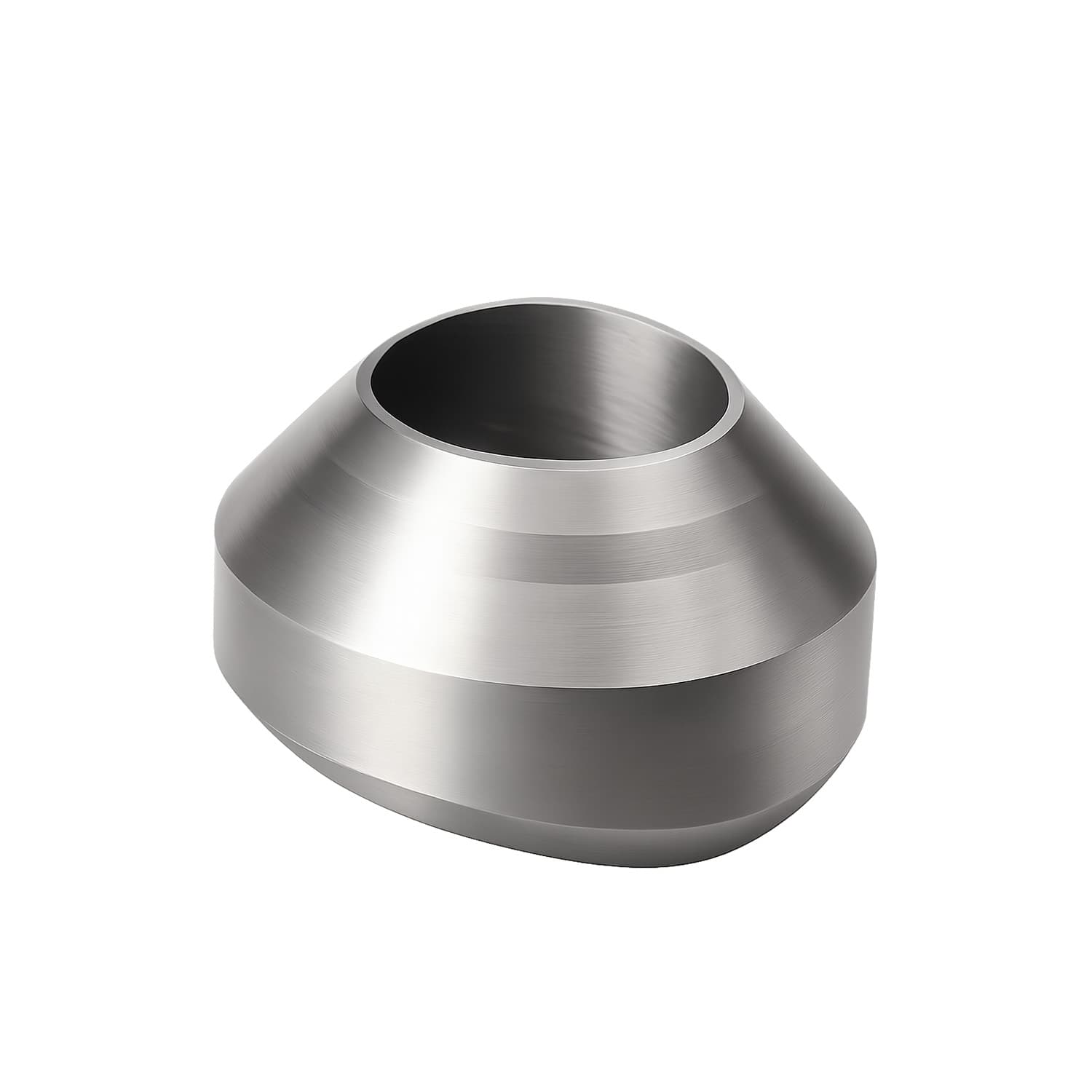

Branch Connections (Olets)
Weldolets, Threadolets, and Sockolets for reliable and reinforced branch connections.
Pipes & Tubes
Seamless and welded stainless steel/carbon steel, carbon steel, and alloy steel pipes for industrial pipelines.

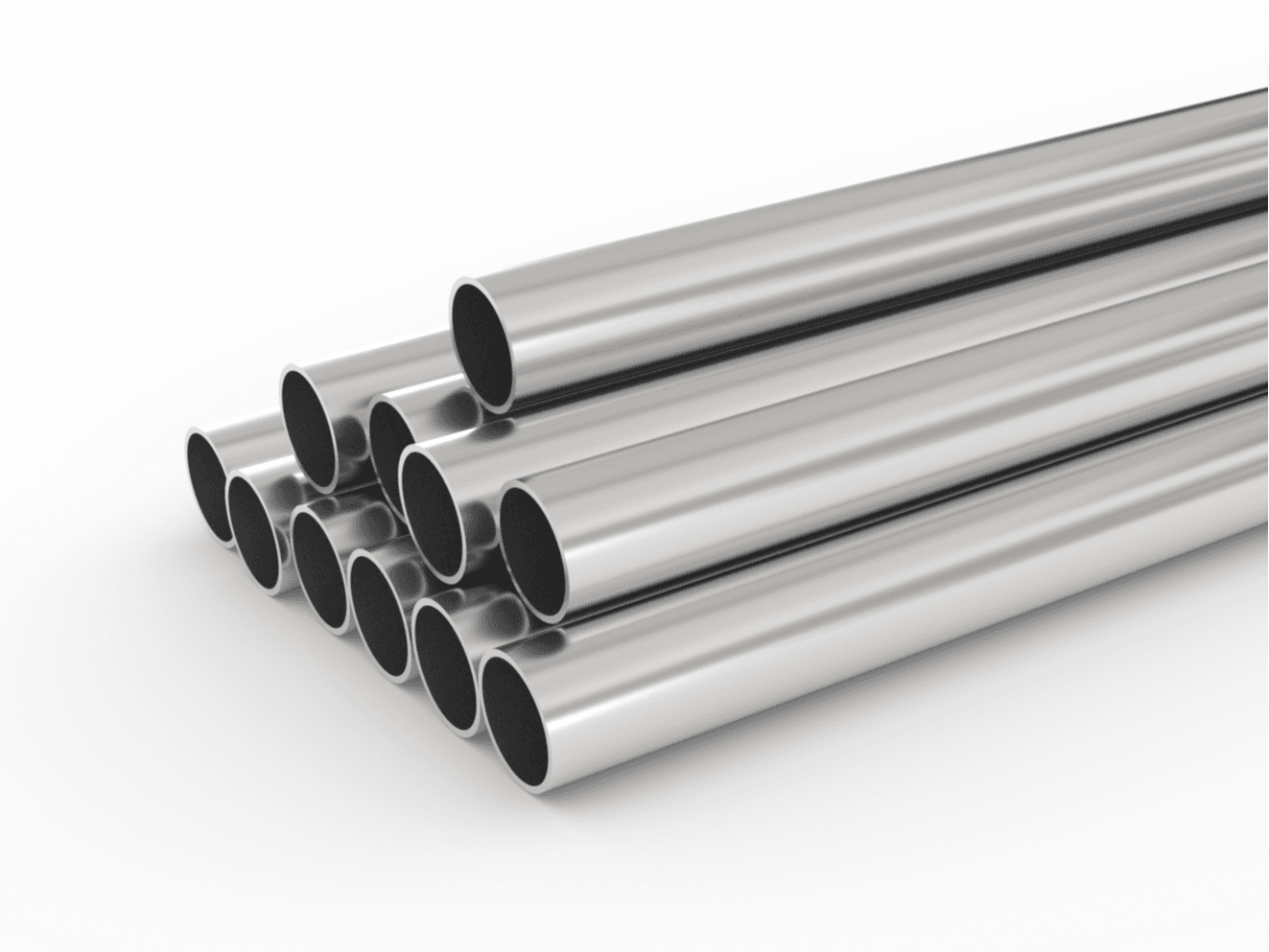

Stainless Steel Seamless Pipes
High strength, corrosion-resistant SS seamless pipes for critical industries.
Stainless Steel Pipes & Tubes
Seamless and welded SS pipes & tubes in 304/316L grades. Supplied in instrumentation, structural, and industrial grades per ASTM A312/A269.

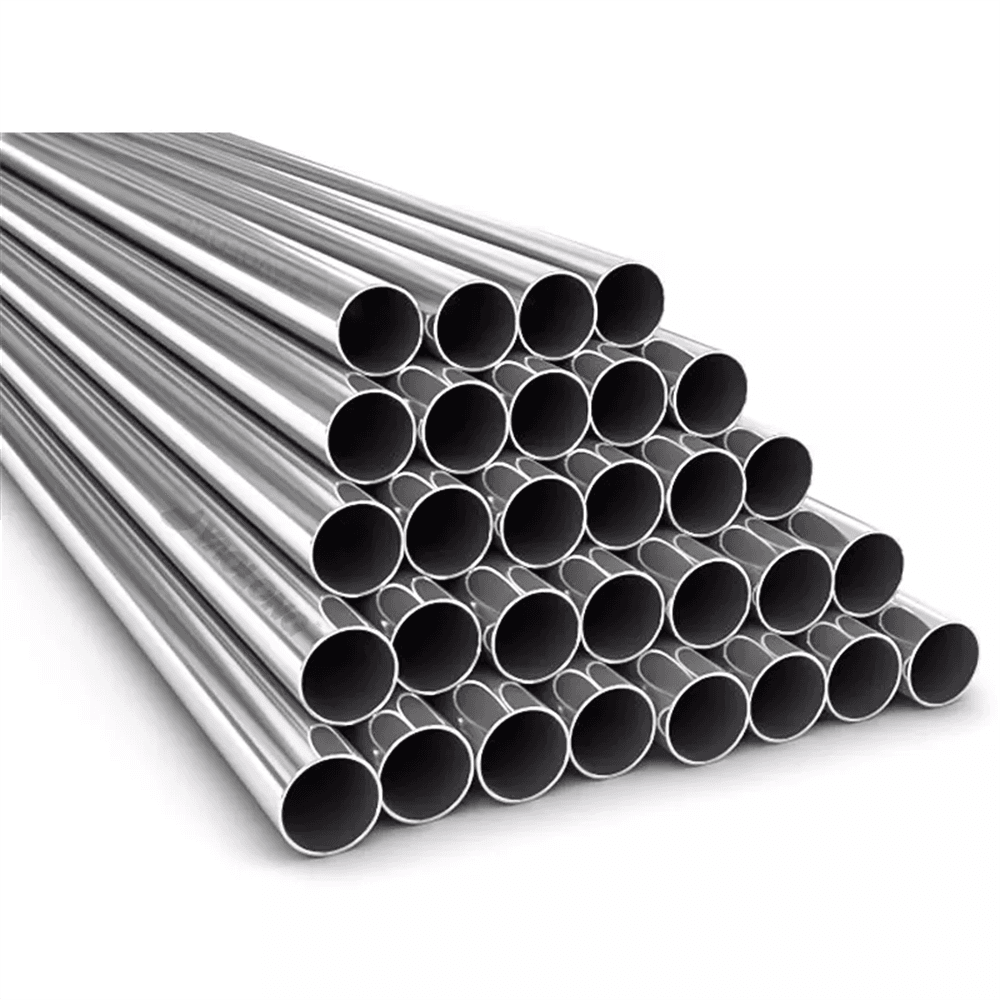

ERW Steel Pipe
Electric Resistance Welded pipes manufactured from steel coils.

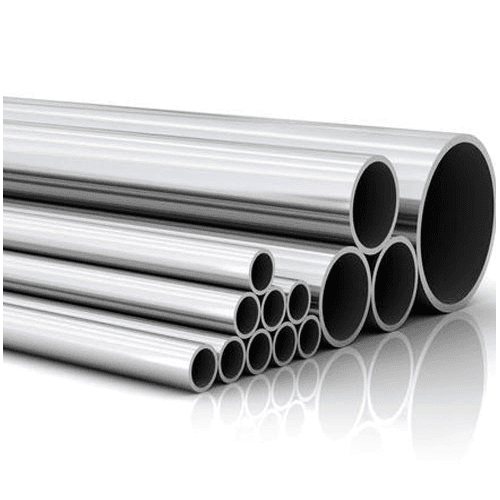

Seamless Steel Pipe
Manufactured without a weld seam for superior pressure resistance and uniformity.
Industrial Valves
Gate, globe, check, and ball valves for robust flow control in high-pressure applications.

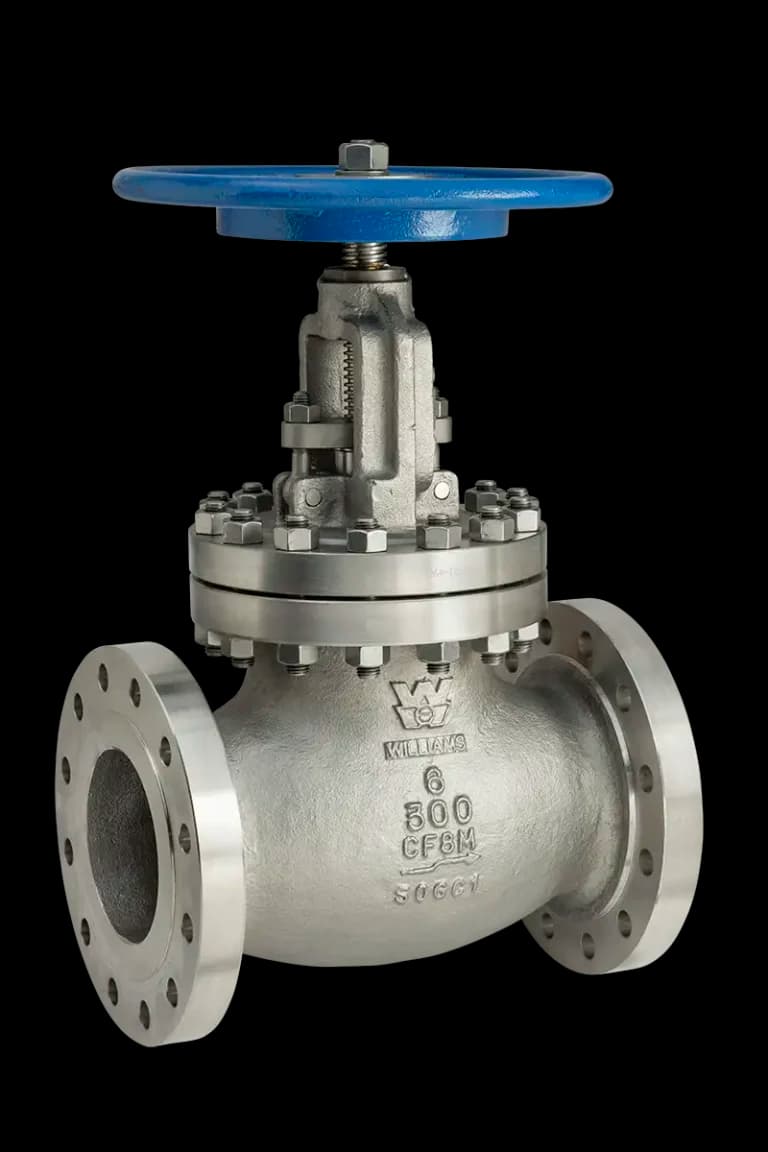

Globe Valve
Linear motion valves designed specifically for regulating and throttling flow.
Ball Valve
Quarter-turn rotary valves using a hollow, perforated ball to control flow.
Gate Valve
Linear motion valves used to completely start or stop fluid flow.

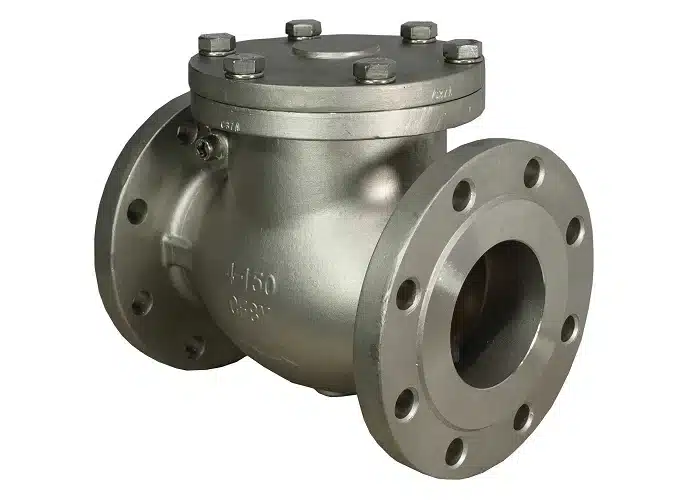

Check Valve (Non-Return Valve)
Automatic valves designed to allow flow in only one direction and prevent backflow.

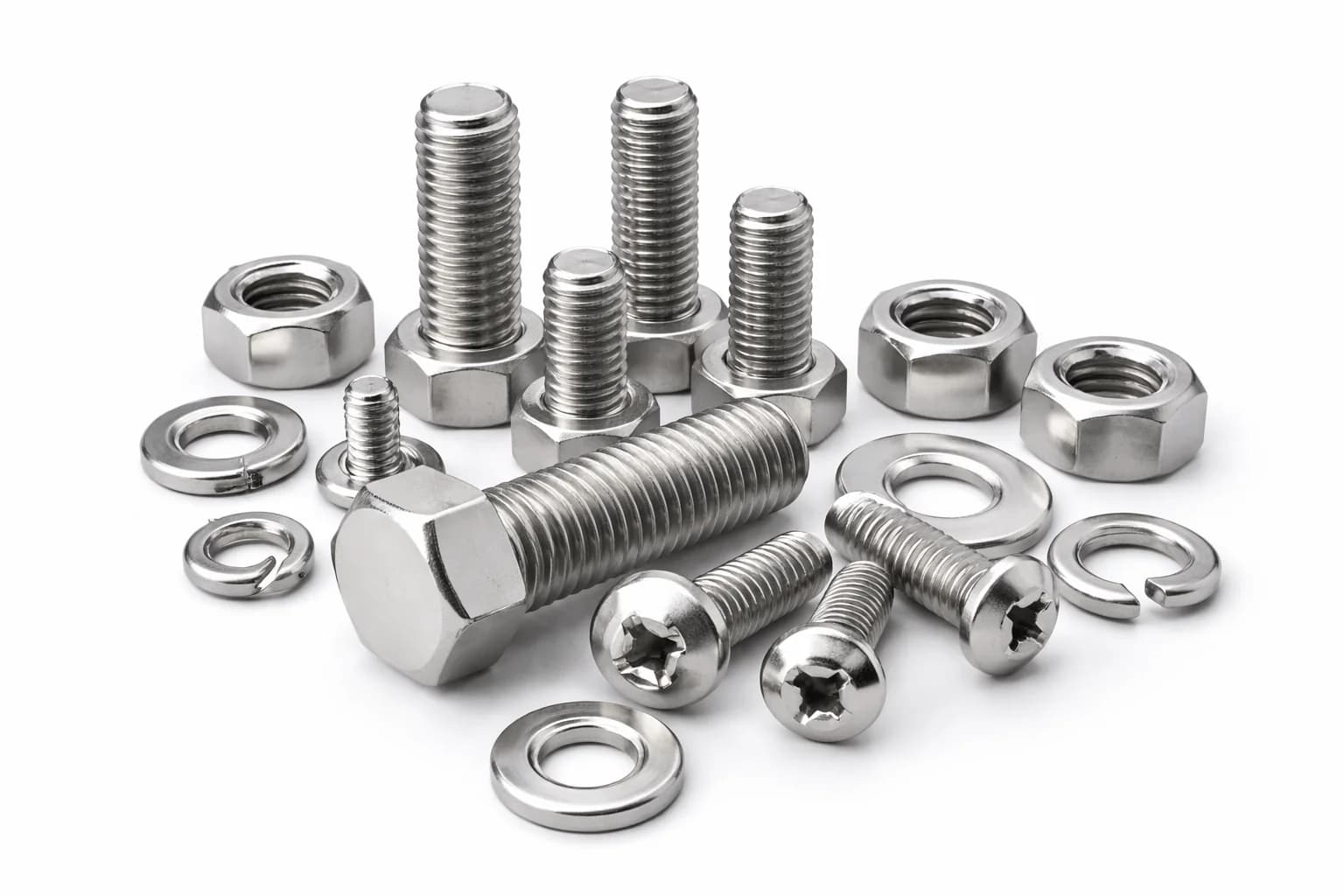

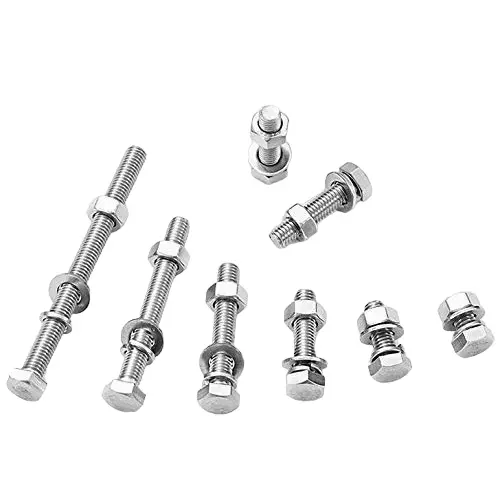

Industrial Fasteners
High-strength stainless steel/carbon steel bolts, nuts, washers, and studs for secure industrial connections.

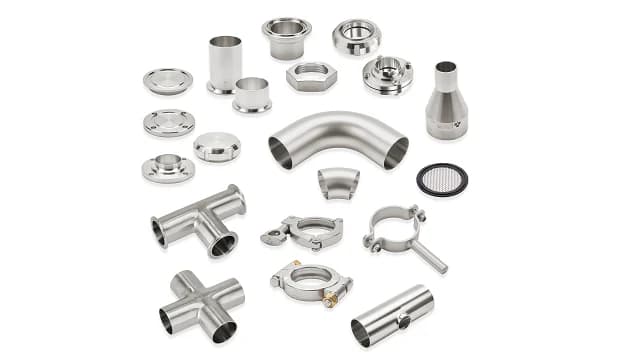

Dairy Fittings
Sanitary stainless steel/carbon steel fittings for food, beverage, and pharmaceutical industries.

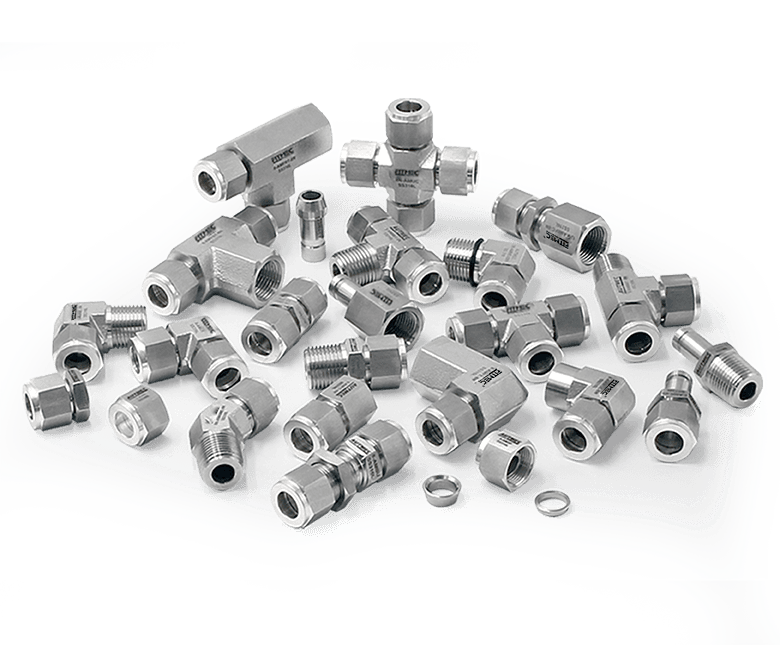

Instrumentation Fittings
Precision double ferrule tube fittings for high-pressure fluid and gas systems.

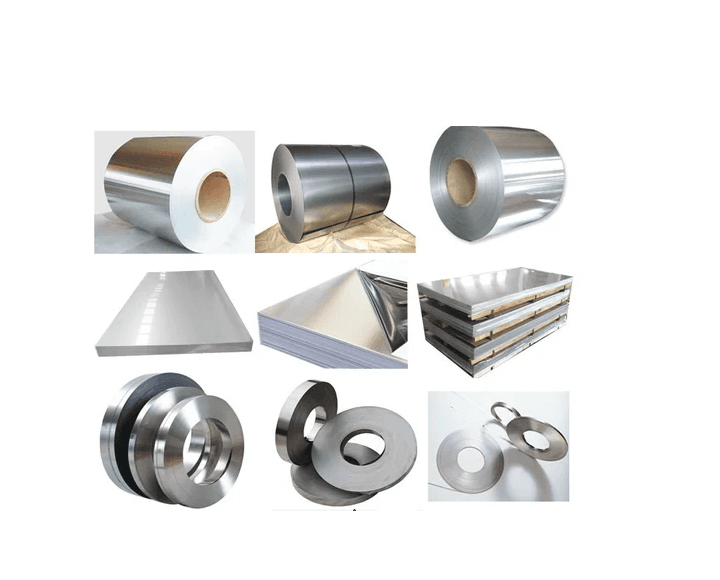

Sheets, Plates & Coils
High-quality stainless steel/carbon steel sheets, plates, and coils in various grades and finishes.
